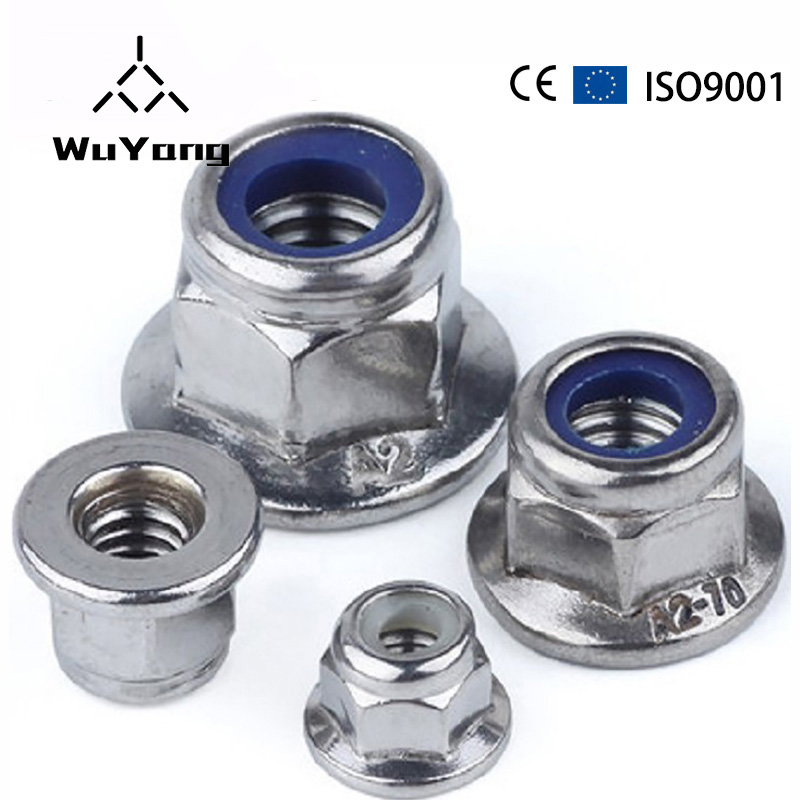

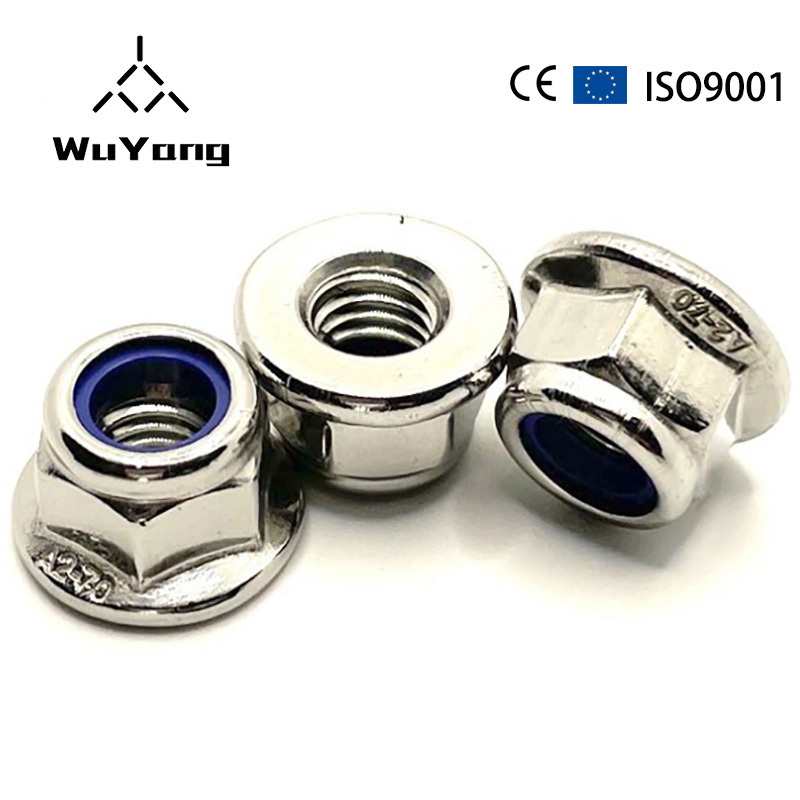

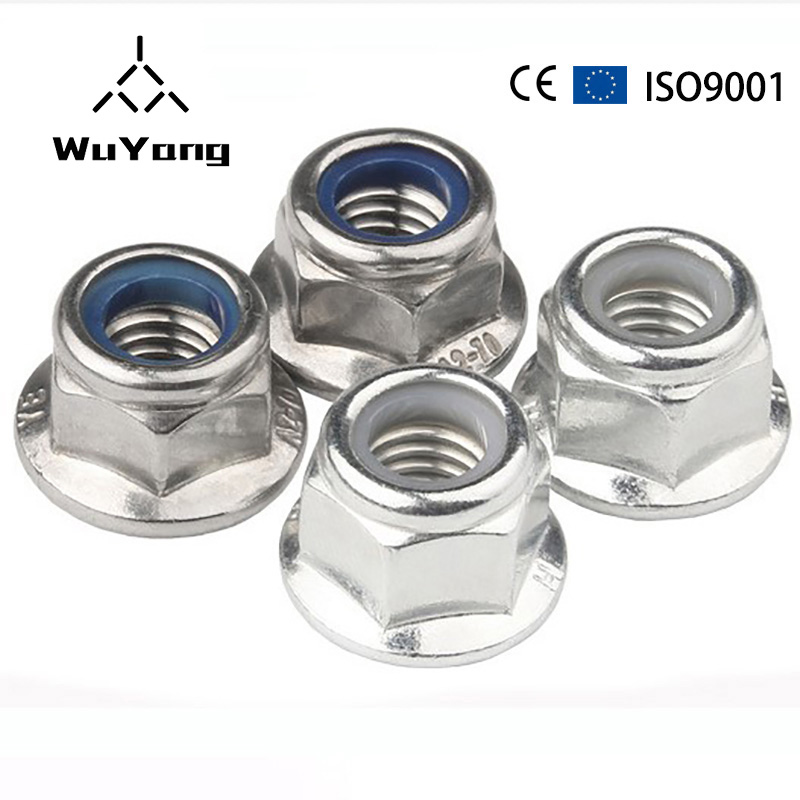

M3 M4 M5 M6 M8 M10 M12 M14 M16 DIN6926 Stainless Steel 304 Nylock Nut Flange Nylon Insert Locking Nuts

Flange anti loosening nut is a type of nut with special structure and performance. The following is a detailed introduction for you:

characteristic:

Flange design: There is a wider flange at the bottom of the nut, which not only increases the contact area between the nut and the connecting piece, reduces the pressure per unit area, thereby reducing damage to the surface of the connecting piece, but also helps to improve the bearing capacity and stability of the nut.
Excellent anti loosening performance: Through various anti loosening mechanisms, such as adding special coatings on threads, using deformed threads, embedding elastic materials (such as nylon rings), etc., it can effectively resist loosening caused by factors such as vibration, impact, and temperature changes, ensuring the reliability and safety of the connection.
High strength: usually made of high-strength materials, capable of withstanding large loads.

Submit request

   

Product Knowledge

Products	Flange Nylon Lock Nuts
Material	Stainless Steel 201 304 316
Standard	DIN6926-1983
Diameter	M3 M4 M5 M6 M8 M10 M12 M14 M16 M20
Type	Flange nuts with polyamide insert, non-serrated
Pitch	0.5mm-2.0mm
Finish	Plain.
Features	Corrosion-resistance , Anti-rust for exterior use , High Strength and Toughness , Durable
Grade	A2-70 .A4-80
Type	Hex Flange Nuts
Thread Type	Fine Thread ,Coarse Thread
Application	Shoulder Screws are used in engineering, marine industry, construction of buildings, bridges, docks and highway structures and many industries
Packing	Poly bags,Box,Cartons,Wooden Pallets

Product Advantages

1. Improve the reliability of connections: In critical mechanical structures and equipment, it can reduce failures and accidents caused by loose nuts.

2.Save maintenance costs: Due to its excellent anti loosening performance, it reduces subsequent inspection and fastening maintenance work, and lowers long-term usage costs.

3.Wide applicability: Suitable for various harsh working environments, such as high vibration and frequent temperature changes.

Carbon steel flange anti loosening nuts are widely used in the following fields due to their relatively low cost, high strength, and certain anti loosening performance:

Mechanical manufacturing: Assembly and connection of various types of mechanical equipment, such as machine tools, printing machines, textile machinery, etc.
Automotive industry: used for fastening connections of automotive engines, chassis, body and other components.
Construction engineering: plays a role in the construction and fixation of steel structures.
Assembly and installation of electrical equipment, such as transformers and distribution cabinets.
General industry: including pipeline connections, ventilation systems, etc.
Agricultural machinery: Manufacturing and maintenance of large agricultural equipment such as harvesters and seeders.
