As a procurement professional, you know that the smallest components can have the biggest impact on a project’s success. A single failed fastener can lead to catastrophic breakdowns, costly delays, and a damaged reputation. This is especially true for the humble yet mighty dowel pin. While it may seem like a simple piece of cylindrical metal, the dowel is a cornerstone of modern engineering, responsible for the precise alignment and secure joining of critical components across countless industries. This guide is designed to provide you, the discerning buyer, with a comprehensive understanding of the dowel pin, from its fundamental purpose to the nuances of material selection and international standards. Reading this will empower you to source the right dowel with confidence, ensuring the integrity and reliability of your assemblies.

What Exactly Is a Dowel Pin and What Is its Primary Function?

At its core, a dowel pin is a solid, headless cylindrical fastener. Its primary job isn’t to provide immense clamping force like a bolt, but to ensure perfect alignment and location between two or more separate parts. Imagine you have two large plates of steel that need to be bolted together. Before you insert the bolts, you need to be absolutely certain that the holes in both plates line up perfectly, every single time. This is where the dowel pin comes in. By inserting a precision-ground dowel pin into corresponding holes in both plates, you lock them into a fixed, repeatable position. This precision alignment is the main reason dowel pins are used. The dowel pin acts as a reference point, eliminating any potential for shifting or misalignment during assembly or operation.

Beyond alignment, a dowel can also function as a pivot point for a rotating component or as a simple hinge. In some applications, a dowel pin can bear shear loads, preventing parts from sliding against each other. The beauty of the dowel pin lies in its simplicity and effectiveness. The pin is inserted into a reamed hole, and its tight tolerance ensures a secure friction fit, often called an interference fit or press fit. This means the dowel is slightly larger than the hole it’s going into, creating a strong, secure connection without the need for threads or adhesives. This makes the dowel pin one of the most reliable and essential components in high-precision engineering. A well-made dowel ensures that complex machinery and structures are assembled with the accuracy they require to function correctly and safely. Using dowel pins is a fundamental practice in quality manufacturing.

A dowel pin may seem insignificant, but its role in maintaining structural integrity cannot be overstated. When you used to join parts, this small dowel guarantees that everything stays exactly where it’s supposed to be. It is one of the most foundational types of fasteners in the industry. For anyone involved in sourcing or engineering, understanding the function of a dowel pin is the first step toward appreciating its importance. The dowel is more than just a pin; it’s a guarantee of precision and accuracy.

What Are the Different Types of Dowel Pins Available for Industrial Use?

While the concept of a dowel pin is straightforward, there are several variations designed for a specific application. The most common type is the solid dowel pin. This is simply a solid cylinder of material, ground to a very tight tolerance. These are the workhorses of the dowel world, used for alignment, locating, and as pivots in a vast range of applications. A solid dowel pin provides maximum strength and rigidity. The ends of a dowel pin are often manufactured with a chamfer, which is a slight bevel. This chamfer helps guide the dowel into its hole, making assembly easier and preventing damage to the hole or the pin itself.

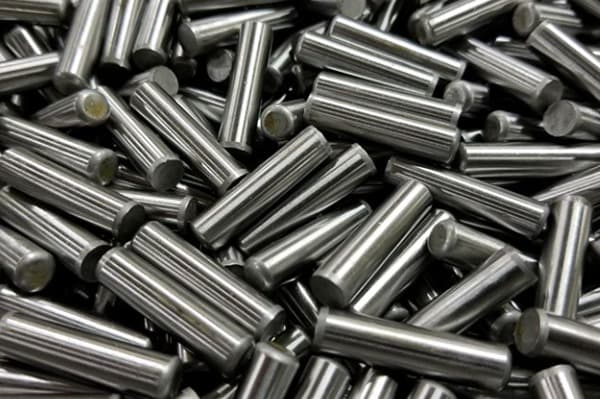

Another important variation is the grooved dowel pin. This type of dowel features a series of longitudinal or spiral grooves along its body. These grooves serve multiple purposes. They allow trapped air or fluid to escape during installation into a blind hole, preventing pressure buildup that could damage the components or prevent the dowel pin from seating fully. The groove can also hold lubricants for applications involving rotation or provide a slightly better grip within the hole. For applications where disassembly is required, a pull dowel is often used. This dowel pin has a tapped hole in one end, allowing a screw to be inserted to pull the dowel out of its hole without damaging the surrounding material. This design is incredibly useful for maintenance and repair operations in complex machinery. These types of dowel pins offer unique advantages.

Finally, there are specialized dowel designs like tapered pins, which are cone-shaped and provide a locking action, and spring pins (or roll pins), which are hollow and split to provide a flexible fit. However, for high-precision locating, the solid dowel pin remains the industry standard. At Hebei Wuyang Fastener, we specialize in manufacturing these high-precision solid dowel pins, ensuring every dowel we produce meets the exact specifications required by our customers. Understanding these different pins used helps in selecting the perfect dowel for your project. A proper dowel ensures the longevity of the entire assembly.

How Do Metal Dowel Pins Compare to Traditional Wooden Dowel Pins?

The fundamental difference between a metal dowel pin and its wooden counterpart lies in their intended applications, material properties, and required precision. Wooden dowel pins are staples of woodworking and furniture making. They are typically made of wood, such as birch or beech, and are used to join pieces of solid wood or composite boards. The primary function of a wooden dowel is to add strength and alignment to a joint, often in conjunction with an adhesive like wood glue. The porous nature of wood allows the glue to penetrate and form a powerful bond, making the dowel an integral part of the structure. However, wooden dowel pins lack the shear strength, hardness, and tight tolerance needed for industrial or engineering applications.

A metal dowel pin, on the other hand, is engineered for high-stress, high-precision environments. These pins are made from various metals, including hardened alloy steel and stainless steel, and are ground to extremely precise diameters. Unlike a wooden dowel, a metal dowel pin relies on a friction or interference fit for its holding power, not an adhesive. This precise fit is critical in applications within the automotive, aerospace, and machinery sectors, where even microscopic misalignment can lead to failure. The dowel must withstand significant shear forces, vibration, and temperature fluctuations without deformation—something a wooden dowel simply cannot do.

In summary, the choice between these two types of dowel is entirely dependent on the application. For joining wooden components where the primary goal is reinforcement with glue, wooden dowel pins are ideal. For any application requiring the precise and repeatable alignment of metal components together, especially under load or in harsh conditions, the metal dowel pin is the only viable option. We, as manufacturers of industrial fasteners, focus exclusively on the production of high-grade metal dowel pins because our customers in construction, manufacturing, and transportation depend on that level of performance and reliability. Using the correct dowel is non-negotiable for safety and quality. The dowel pin is a key component.

What Materials Are Commonly Used for a High-Performance Metal Dowel Pin?

The material used for dowel pins is a critical factor that dictates their strength, hardness, and resistance to environmental factors like corrosion. The selection of the right material ensures the dowel pin will perform reliably throughout its service life. One of the most common materials is alloy steel, which is often through-hardened. This process involves heating the steel and then quenching it, creating a uniform hardness throughout the entire dowel. This makes the dowel pin extremely tough and resistant to shear forces and deformation, which is essential for locating applications in heavy machinery and tooling.

Another popular choice, especially for applications exposed to moisture or chemicals, is stainless steel. There are several grades of stainless steel used for dowel pins. For instance, 303 stainless steel offers good corrosion resistance and is easier to machine, making it a cost-effective option for many general-purpose applications. For more demanding environments, such as marine or food processing industries, 316 stainless steel is preferred. This grade contains molybdenum, which significantly enhances its resistance to chlorides and other corrosive agents. A stainless steel dowel pin ensures longevity where ordinary steel would fail. These stainless steel dowel pins are indispensable in many industries.

The material used directly impacts the performance of the dowel. For less critical applications, softer materials like aluminum or brass might be used, but for the majority of industrial uses, hardened steel or stainless steel is the standard. As a manufacturer, we work closely with clients like Robert to determine the best material used for dowel based on their specific needs—whether it’s for a high-vibration engine assembly or a chemical processing plant. The choice of dowel pin material is a crucial engineering decision. The right dowel material prevents premature failure. The integrity of the dowel pin is paramount.

Why Is Tolerance So Incredibly Critical When Selecting a Dowel Pin?

In the world of precision engineering, tolerance is everything. For a dowel pin, tolerance refers to the permissible limit of variation in its diameter. This isn’t just a matter of quality control; it’s the very foundation of how a dowel functions. Dowel pins are often designed for a press fit or interference fit, meaning the pin is inserted into a hole that is slightly smaller than its own diameter. This creates a strong, secure connection through friction and radial pressure alone. If the tolerance of the dowel pin is too loose (i.e., the pin is too small, or undersized), it will not create the necessary interference and will fail to align the parts correctly. If the tolerance is too tight (the pin is too large), it can cause excessive stress, damage the hole, or make assembly impossible.

The required tolerance for a dowel pin is incredibly tight, often measured in ten-thousandths of an inch or a few microns. For example, a standard dowel pin might have a tolerance of +0.0001 to +0.0003 inches over its nominal diameter. This ensures a consistent and predictable fit every time. Achieving this level of precision and accuracy requires sophisticated grinding machinery and meticulous quality control processes. This is why sourcing dowel pins from a reputable manufacturer is so crucial. A supplier who cuts corners on tolerance is providing a product that simply will not perform its primary function. A dowel with the wrong tolerance is useless.

As a senior procurement officer, this is a key area of concern. When you specify a dowel pin, you are specifying a very precise diameter. You need assurance that every single dowel in a bulk order falls within that exact tolerance range. Inconsistent tolerance can bring an entire production line to a halt. We understand this pain point intimately. Our manufacturing lines are calibrated to produce dowel pins with exceptionally tight tolerances, and our quality assurance team verifies these dimensions to guarantee that every dowel pin we ship will provide a precise fit. This commitment to tolerance is what separates a reliable fastener supplier from an unreliable one. The dowel must be perfect.

This table illustrates how the interplay between the hole and dowel pin tolerance dictates the type of fit. A successful assembly depends on getting this right. The dowel pin must match the intended fit.

How Do You Correctly Install a Dowel for Flawless Precision Assembly?

Proper installation is just as important as selecting the right dowel pin. A flawed installation process can negate all the benefits of a high-precision dowel. The first step is hole preparation. The corresponding holes in the mating components must be drilled and then reamed to the correct size and tolerance. Reaming is a finishing process that creates a smooth, precise hole, which is essential for a proper press fit. The hole must also be perfectly perpendicular to the surface to ensure the dowel pin aligns the multiple parts correctly. Any debris, oil, or burrs must be cleaned from the hole before installation.

Once the holes are prepared, the dowel pin is installed. For a press fit, this requires force. This force should be applied steadily and axially along the length of the dowel. Using a hammer directly on the dowel pin can cause it to mushroom or bend, damaging it and the workpiece. The best practice is to use an arbor press or a hydraulic press with a special punch that ensures the force is applied evenly. For dowel pins are made of hardened steel, this controlled pressure is essential. The chamfer on the end of the dowel helps to guide it into the hole, but the force must still be applied with care to achieve a secure fit.

After installation, the dowel pin should be securely seated and the parts perfectly aligned. A correctly installed dowel ensures that when the main fasteners, like bolts or screws, are tightened, they are not subjected to the shear forces that the dowel pins are designed to handle. This division of labor—dowel pins for alignment and location, bolts for clamping force—is a fundamental principle of robust mechanical design. Following these installation steps for every dowel guarantees the integrity and precision of the final assembly. Many applications rely on this careful process.

In Which Industries Are Steel Dowel Pins Most Frequently Used?

Steel dowel pins are ubiquitous in any industry where the precise alignment of components together is critical. The applications in many industries are vast. In the automotive sector, for example, dowel pins are commonly used to align engine blocks with cylinder heads, transmission housings, and other critical powertrain components. This precise alignment ensures that gaskets seal properly and that moving parts operate with the correct clearances. In tooling, jigs, and fixtures, dowel pins are essential for locating workpieces accurately for machining operations. A machinist relies on the dowel to ensure that every part produced is identical.

The aerospace industry also relies heavily on the dowel pin. From aligning fuselage sections to locating components within jet engines, the need for absolute precision and reliability is paramount. A dowel pin in this context must not only provide alignment but also withstand extreme vibrations and temperature changes. This is why material choice and tolerance are so intensely scrutinized. Furthermore, in the manufacturing of heavy machinery, such as presses, lathes, and turbines, dowel pins are used to align large, heavy castings and housings, ensuring that gears mesh correctly and bearings are seated properly. They are one of the essential components in these massive assemblies.

From medical devices to electronics and even in the assembly of plastic molds, the dowel pin plays a vital role. Essentially, any application where two or more components together must be joined with repeatable accuracy will likely use a dowel pin. Their simplicity, strength, and the high degree of precision they provide make them an indispensable tool for engineers and designers across the globe. These pins are used to align parts with incredible accuracy. At Hebei Wuyang Fastener Co., Ltd., we supply a wide array of industrial fasteners, including dowel pins, to these demanding sectors. We also provide other critical fasteners such as high-grade hex head bolts for robust structural connections.

What Are the Key International Standards for Dowel Pins, Such as DIN 7?

To ensure interchangeability and consistent quality across a global supply chain, dowel pins are manufactured to meet specific international standards. These standards dictate dimensions, tolerance, materials, and other key characteristics. One of the most widely recognized standards for a parallel dowel pin is DIN 7. Originating from the German Institute for Standardization (Deutsches Institut für Normung), DIN 7 specifies the dimensions for unhardened steel dowel pins. It provides a clear framework for manufacturers and buyers, ensuring that a dowel pin from one supplier is a direct replacement for one from another, as long as they both adhere to the DIN 7 standard.

Another common standard is ISO 2338. The International Organization for Standardization provides this specification, which is very similar to DIN 7 but may have slight variations in tolerance or available sizes. For hardened dowel pins, standards like ISO 8734 are used. This standard is crucial because it specifies not only the dimensions but also the required hardness of the dowel, which is a critical performance attribute. Adherence to these standards is a mark of a quality manufacturer. It gives procurement professionals like you the confidence that the dowel you are purchasing has been produced to a globally accepted level of precision and accuracy.

When sourcing a dowel pin, you should always specify the standard you require, be it DIN 7, ISO 8734, or another relevant specification like ASME B18.8.2 for the American market. This removes ambiguity and ensures you receive a product that fits your design intent perfectly. At Wuyang Fastener, we are well-versed in these international standards and manufacture our dowel pins to comply with them. Our commitment to standards like DIN 7 is part of our promise to deliver reliable, high-quality fasteners to our clients worldwide. A standard dowel from a reputable source is a safe bet. Following a standard like DIN 7 for a dowel is best practice.

How Can I Guarantee the Dowel I Source Meets Quality and Performance Standards?

This is perhaps the most critical question for any procurement officer, and it addresses a major pain point: supplier reliability. Guaranteeing the quality of a dowel pin comes down to three key areas: material certification, manufacturing process control, and a strong supplier relationship. First, always demand material certifications. A reputable manufacturer should be able to provide you with a Mill Test Report (MTR) for the raw material used to make the dowel pins. This report details the chemical composition of the steel, confirming that it is the grade you specified (e.g., 316 stainless steel or hardened alloy steel). This is your first line of defense against certificate fraud and inconsistent material quality.

Second, inquire about the manufacturer’s quality control processes. How do they control the grinding process to maintain tight tolerances? What is their inspection frequency? Do they use calibrated measuring equipment? A trustworthy supplier will be transparent about these processes. For example, at our facility, we use statistical process control (SPC) to monitor our production lines, and our QA department conducts multi-stage inspections to verify that every batch of dowel pins meets the required specifications for diameter, length, hardness, and surface finish. This meticulous approach ensures that the dowel pin you receive is of consistent, high quality. We also supply a wide range of other high-strength fasteners like our chemical anchor bolts, which undergo similarly rigorous testing.

Finally, build a relationship with your supplier. Clear communication is key. A good sales team should have the technical knowledge to answer your questions about the dowel and its performance. Look for a supplier who is willing to work with you, provide samples for testing, and offer clear terms for logistics and payment. As a factory established in 2019 with a focus on both standard components and custom development, we pride ourselves on being more than just a supplier; we aim to be a partner in our clients’ success. By focusing on these areas, you can significantly reduce your risk and ensure that the dowel pins you procure will perform as expected in their critical applications. A quality dowel reflects a quality supplier. The right dowel pin is a mark of excellence.

What Customization Options Exist for a Specific Dowel Pin Application?

While standard dowel pins like those defined by DIN 7 cover a wide range of needs, many modern engineering projects require custom solutions. As a manufacturer offering both OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services, we frequently work with clients to develop a custom dowel pin tailored to their unique requirements. Customization can take many forms. One of the most common is non-standard lengths and diameters. A project might require a specific length of the dowel pin that isn’t available off-the-shelf to fit a unique assembly.

Material customization is also a key area. An application might face a unique combination of heat, pressure, and corrosive agents, requiring a special alloy steel or an exotic stainless steel grade. We can source and machine these materials to create a dowel pin with the exact properties needed. Design features can also be customized. This could include adding a special groove pattern for lubrication, creating a unique chamfer angle for easier robotic assembly, adding a vent flat to a solid dowel to allow air to escape, or tapping a non-standard thread into a pull dowel. For a dowel that needs to be perfect, customization is the answer.

Working with a manufacturer on a custom dowel pin allows you to optimize your design for performance, cost, and ease of assembly. Our engineering team can collaborate with yours to turn a concept into a finished product. Whether you need a small modification to a standard dowel or a completely new design, a flexible manufacturing partner is invaluable. This capability is essential for companies pushing the boundaries of innovation in industries like aerospace, medical devices, and high-performance machinery. Just as we customize complex components like our high-quality galvanized steel flange nuts, we apply the same precision and care to every custom dowel pin project. The possibilities for a custom dowel are nearly endless. A custom dowel pin can solve many engineering challenges.

Key Takeaways to Remember

To ensure you are sourcing the best possible dowel pin for your needs, keep these critical points in mind:

• Primary Function: A dowel pin is fundamentally for alignment and location, not clamping. It ensures precision in assembling multiple parts.
• Material Matters: The choice between hardened alloy steel, various grades of stainless steel, or other metals depends entirely on the application’s demands for strength and corrosion resistance.
• Tolerance is Non-Negotiable: The success of a dowel depends on its tight tolerance. Always specify the required fit and ensure your supplier can consistently meet that precision.
• Standards Provide Assurance: Sourcing dowel pins that conform to international standards like DIN 7 or ISO 8734 guarantees interchangeability and a baseline level of quality.
• Installation is Crucial: A perfectly made dowel pin can fail if installed improperly. Ensure holes are reamed correctly and that force is applied evenly during assembly.
• Supplier Vetting is Key: Protect your projects from failure by demanding material certifications, understanding the manufacturer’s quality control processes, and building a transparent relationship.
